320 Series
320 Series Tactile Pushbutton Switch
- Through hole
- 12.4mm x 12.4mm
- Many cap styles and colors
- Many additional cap options
- 1,000,000 cycle life
- 135gf operating force
- 0.7mm travel
CS Series
CS Series Illuminated, Touch Sensor Anti-Vandal Switch
- 19mm or 22mm panel cutout
- 1A, 24VDC; IP68 rated
- SPST; latching or momentary
- Touch sensor, capacitive switch
- Wire leads with connector
- LED ring, or ring/power symbol
- Aluminum, clear anodized finish
KS1100 Series
KS1100 Series Pushbutton Switch with Keyboard Functionality
- Through hole
- 10mA, 12VDC
- SPST Off-(On)
- Keyboard functionality
- Plunger for cap
- 15.2mm actuator height
- 60gf operating force
LL3301 Series
LL3301 Series Long Life SMT Tactile Switch
- Long life version of the TL3301
- SMT
- 6mm x 6mm
- Many actuator height options
- Cap options for certain models
- 70gf operating force
- 1,000,000 cycle life
LP11 Series
LP11 Series Illuminated Pushbutton Switch
- Through hole
- 100mA, 12VDC
- SPST; latching or momentary
- Tactile or non-tactile feel actuator
- Three actuator cap size options
- LED illumination options
- LED options of bi-color & RGB
LS Series
LS Series Snap Action Switch
- Chassis, or thru hole rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 15A, 125/250VAC; UL, VDE
- SPDT, SPST-NC, or SPST-NO
- Solder, quick connect, or PC pin
- Pin plunger, or six lever options
- 25gf – 250gf operating force
MS Series
MS Series Miniature Snap Action Switch
- Chassis, thru hole, or rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 5A, 125/250VAC; UL, VDE
- SPDT or SPST-NO
- Solder, quick connect, or PC pin
- Pin plunger, or seven lever options
- 10gf – 295gf operating force
PV0 Series
PV0 Series Illuminated Anti-Vandal Switch
- 12mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- High or flat actuator
- Solder or wire leads
- LED ring, dot, or power symbol
- Stainless steel or black anodized
PV1 Series
PV1 Series Long Life Anti-Vandal Switch
- 19mm panel cutout
- 2A, 36VDC; IP65 rated
- SPST Off-(On)
- Domed, high, or flat actuator
- Solder, screw, or wire leads
- Non-illuminated
- Gold, nickel, stainless, or black
PV2 Series
PV2 Series Long Life Anti-Vandal Switch
- 16mm panel cutout
- 2A, 48VDC; IP65 rated
- SPST Off-(On)
- Domed, high, or flat actuator
- Solder, screw, or wire leads
- Non-illuminated
- Gold, nickel, stainless, or black
PV5 Series
PV5 Series Long Life Anti-Vandal Switch
- 12mm panel cutout
- 2A, 36VDC; IP65 rated
- SPST Off-(On)
- Domed or raised actuator
- Solder, screw, or wire leads
- Non-illuminated
- Body & actuator finish options
PVA6 Series
PVA6 Series Illuminated, Long Life Anti-Vandal Switch
- 16m panel cutout
- 2A, 36VDC; IP67 rated
- SPST; latching or momentary
- Domed, high or flat bezel/actuator
- Solder, wire leads, or molded back
- LED ring or ring/power symbol
- Stainless steel, clear, or black
PVL Series
PVL Series Illuminated Pilot Indicator
- 6mm-25mm panel cutout
- Pilot lamp indicator light; IP67
- Flat or domed actuator
- Solder, screw, or wire leads
- LED illuminated dot
- Stainless steel, black, or nickel
- 40,000 hours nominal lamp life
PVT4 Series
PVT4 Series Illuminated, Tactile Response Anti-Vandal Switch
- 19m panel cutout
- 50mA, 24VDC; IP65 rated
- SPST Off-(On)
- Tactile response; 0.5mm travel
- Solder or wire leads
- LED ring illumination
- Stainless steel or black anodized
PZ Series
PZ Series Illuminated Anti-Vandal, Piezo Switch
- 16mm, 19mm, or 22mm cutout
- 1A, 24VDC; IP68 rated
- SPST Off-(On); Piezo switch
- Concave or flat bezel
- Wire leads with connector
- LED ring, or non-illuminated
- Clear anodized or black anodized
SS Series
SS Series Subminiature Snap Action Switch
- Chassis, thru hole, or rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A or 0.1A options; UL
- SPDT On-(Off)
- Solder, PC pin, retention, or angled
- Pin plunger, or three lever options
- 15gf – 130gf operating force
SV4 Series
SV4 Series Illuminated, Short Body Anti-Vandal Switch
- 19mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads termination
- with ECM Connector option
- LED ring or ring/power symbol
SV7 Series
SV7 Series Illuminated, Short Body Anti-Vandal Switch
- 22mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads termination
- with ECM Connector option
- LED ring or ring/power symbol
SV8 Series
SV8 Series Illuminated, Short Body Anti-Vandal Switch
- 25mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads termination
- with ECM Connector option
- LED ring or ring/power symbol
TD1250 Series
TD1250 Series Sealed, Long Life Detector Switch
- Through hole or Panel Mount
- Up to 50mA, 16VDC; IP67 rated
- SPST Off-(On)
- Pin plunger, or lever actuator
- 160gf max. operating force
- Free position, operating position, total travel dependent on actuator
TD4700 Series
TD4700 Series Ultraminiature SMT Detector Switch
- SMT
- 1mA, 5VDC
- SPST Off-(On)
- Angled toggle detector
- 50gf max. force; 2.2mm travel
- Mounting boss option
- Ultraminiature size; guiding post

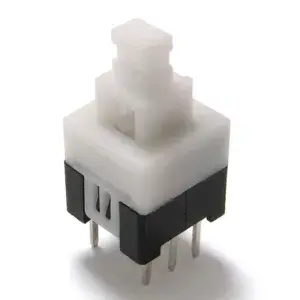

TL2230 Series
TL2230 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination
- Plunger actuator options
- Many cap options
- 100gf, 140gf, or 230gf
TL2233 Series
TL2233 Series Subminiature Pushbutton Switch
- SMT
- 100mA, 30VDC
- DPDT On-(On)
- Gullwing termination
- Rectangular button actuator
- White actuator; black housing
- Wave solderable
View Series
TL3145 Series
TL3145 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.45mm x 6.45mm
- 3,000,000 cycles
- 180gf, 260gf, or 350gf force
- actuator height options
- J lead termination
TL3215 Series
TL3215 Series Ultraminiature, Long Life, Illuminated, SMT Tactile Switch
- SMT
- 4.9mm x 4.9mm
- LED Illuminated
- many LED color options
- 2.0mm actuator height
- 1,000,000 cycle life
- 160gf or 250gf operating force
TL3253 Series
TL3253 Series Dual Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.4mm x 10.55mm
- Single or dual LED illuminated
- LED color options
- Dual actuation
- Additional cap options
- 22.6mm height
- 160gf operating force
TL3265 Series
TL3265 Series Illuminated, SMT Tactile Switch
- SMT
- 7mm x 6.8mm
- LED Illuminated
- LED color options
- Many additional cap options
- 12mm height
- 160gf operating force
TL3300 Series
TL3300 Series Long Life, SMT Tactile Switch
- SMT
- 12mm x 12mm
- Many operating forces
- Many actuator height options
- up to 10,000,000 cycles
- Silver contact material
- -25 to 70°C operating temp
TL3301 Series
TL3301 Series SMT Tactile Switch
- SMT
- 6mm x 6mm
- 100gf 160gf, or 260gf force
- Many actuator height options
- Cap options
- 100,000 cycle life
- Gull wing or J lead
TL3303 Series
TL3303 Series SMT Tactile Switch
- SMT
- 6mm x 6mm
- Ground terminal option (TLE)
- Long life option (LL)
- 100gf, 160gf, or 260gf force
- Two actuator height options
- Gull wing termination
TL3315 Series
TL3315 Series Ultra Low Profile, SMT Tactile Switch
- SMT
- 4.5mm x 4.5mm
- low profile of 0.55mm
- 0.20mm travel
- Three operating forces
- Up to 1,000,000 cycle life
- Silver contact material
TL4100 Series
TL4100 Series Miniature, SMT Edge Mount Right Angle Tactile Switch
- SMT, rt. angle edge mount
- 6.2mm x 2.5mm
- 2.0mm actuator height
- 120gf, 160gf, or 240gf
- Gullwing; L-shape terminals option
- Up to 1,000,000 cycle life
- 0.15mm travel
TL4110 Series
TL4110 Series Low Profile, SMT Edge Mount Right Angle Tactile Switch
- SMT
- 2.0mm x 2.8mm
- 0.65mm actuator height
- 160gf operating force
- Gull wing termination
- 300,000 cycle life
- 0.13mm travel

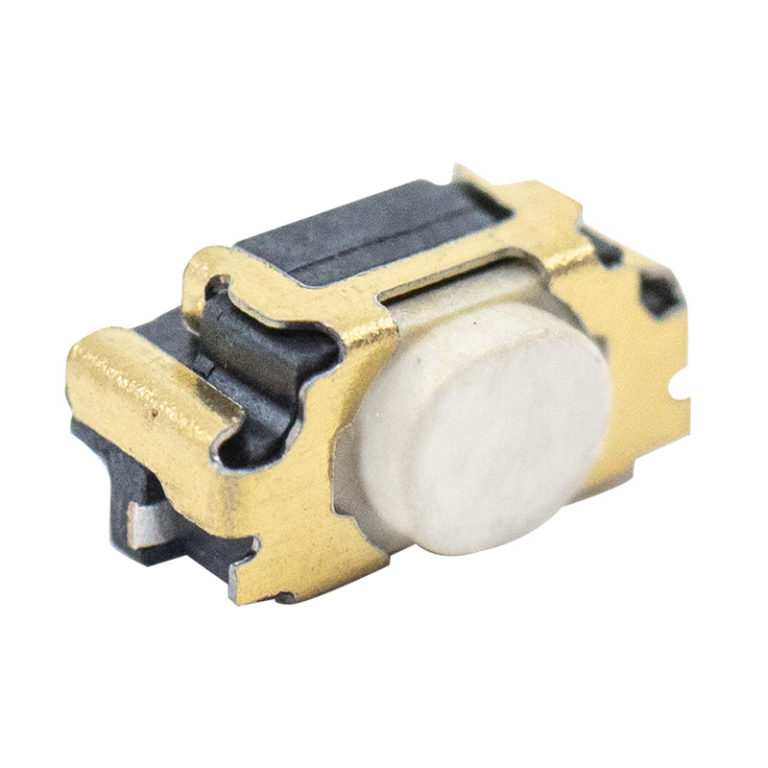

TL4115 Series
TL4115 Series SMT Edge Mount Right Angle Tactile Switch
- SMT
- 4.5mm x 2.2mm
- 2.6mm actuator height
- 160gf or 220gf operating force
- 600,000 cycle life
- 0.15mm travel
- Silver contact material
TL6100 Series
TL6100 Series Sealed, Through Hole Tactile Switch
- IP67
- Through hole
- 7.4mm x 7.4mm
- Many operating forces
- Many actuator height options
- Up to 1,000,000 cycle life
- Silver or gold contacts
TL6105 Series
TL6105 Series Sealed, Through Hole Tactile Switch with Earth Ground Terminal
- IP67
- Through hole
- 7.4mm x 7.4mm
- Earth ground terminal
- Many operating forces
- Many actuator height options
- Up to 1,000,000 cycle life
TL6120 Series
TL6120 Series Sealed, SMT Tactile Switch
- IP67
- SMT
- 7.4mm x 7.4mm
- Many operating forces
- Many actuator height options
- Up to 1,000,000 cycle life
- Silver or gold contacts
TL6150 Series
TL6150 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.2mm x 6.2mm
- Up to 5,000,000 cycles
- Three operating forces
- Two actuator height options
- Gull wing or J lead
TL6200 Series
TL6200 Series Sealed, Long Life, Tactile Switch
- IP67
- SMT or Through hole
- 10.1mm x 10.1mm
- Many actuator height options
- Long life of 10,000,000 cycles
- 300gf operating force
- Black or white actuator
TL6300 Series
TL6300 Series Sealed, Long Life, Through Hole Tactile Switch
- IP67
- Through hole
- 12mm x 12mm
- Long life of 10,000,000 cycles
- 130gf or 260gf operating force
- 7.3mm or 4.3mm actuator height
- 0.3mm travel
TL6700 Series
TL6700 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.9mm x 6.2mm
- Up to 500,000 cycle life
- Flush or 3.4mm actuator
- 160gf or 260gf operating force
- Gull wing or J lead
TL6800 Series
TL6800 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.3mm x 6.2mm
- Up to 1,000,000 cycle life
- 160gf or 260gf operating force
- 3.1mm actuator height
- Silver contact material
TM1000 Series
TM1000 Series Tilt Switch
- Through hole right angle
- 20mA, 20V (AC or DC)
- SPST output
- ±45° operating angle
- 1,000,000 life cycles
- Contains no mercury
- Silver contact material
TS2 Series
TS2 Series SMT Snap Action Switch
- SMT
- 100mA, 125VAC or 48VDC
- SPST Off-(On)
- Pin plunger actuator
- 70gf operating force
- 3,000,000 life cycles
- Tape & reel packaged
ULP Series
ULP Series Illuminated Pushbutton Switch
- Through hole or panel mount
- 500mA, 25VDC (Silver)
- 100mA, 28VDC (Gold)
- SPDT or DPDT; latching or mom.
- PC pin or solder termination
- Variety of cap styles; clear diffuser
- LED illumination options
ULV4 Series
ULV4 Series UL Certified, Illuminated Anti-Vandal Switch
- 19mm panel cutout
- 3A, 250VAC, UL; IP67 rated
- SPDT or DPDT; latching or mom.
- Flat actuator
- Solder, wire leads, or socket
- LED dot, ring, power, or graphic
- Nickel, stainless steel, or black
View Series
ULV7 Series
ULV7 Series UL Certified, Illuminated Anti-Vandal Switch
- 22mm panel cutout
- 3A, 250VAC, UL; IP67 rated
- SPDT or DPDT; latching or mom.
- Flat actuator
- Solder, wire leads, or socket
- LED ring, ring/power, or graphic
- Stainless steel or black anodized
View Series
ULV8 Series
ULV8 Series UL Certified, Illuminated Anti-Vandal Switch
- 25mm panel cutout
- 3A, 250VAC, UL; IP67 rated
- SPDT or DPDT; latching or mom.
- Flat actuator
- Solder, wire leads, or socket
- LED ring, ring/power, or graphic
- Stainless steel or black anodized
View Series
WS Series
WS Series Sealed Snap Action Switch
- Chassis mount, or through hole
- 0.1A, 125VAC; UL
- 1A 24VDC; UL
- SPDT On-(On); IP67 rated
- Solder, PC pin, or wire leads
- Pin plunger, or two lever options
- 50gf or 70gf operating force
WS1 Series
WS1 Series Sealed Snap Action Switch
- Panel mount
- 0.1A 48VDC or 125/250VAC; UL
- 3A 12VDC or 125/250VAC; UL
- SPDT On-On; IP67 rated
- Solder, or wire leads
- Pin plunger actuator
- 130gf max. operating force
WS2 Series
WS2 Series Sealed Snap Action Switch
- Panel mount or through hole
- 2A, 30VDC or 250VAC; UL
- SPDT On-On; IP67 rated
- Solder, quick connect, or PC pin
- Pin plunger actuator
- 183gf max. operating force
