A surface mount (SMT) feature is important because it allows switches to be directly mounted onto the surface of a printed circuit board (PCB) without the need for through-hole leads. This supports automated assembly processes like pick-and-place and reflow soldering, which are faster, more cost-effective and ideal for high-volume manufacturing. Surface mount switches also help achieve compact, low-profile designs, making them perfect for modern electronics where space and weight are at a premium.
Find Your Product
If you need help finding what you're looking for, use our advanced parametric search to find your specific product.
Product Search
200B Series
200B Series Sealed, Subminiature, SMT Right Angle Toggle Switch
- SMT right angle; IP67 rated
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A, 120VAC or 28VDC; UL
- SPDT; latching or momentary
- Gullwing termination
- Standard metal bat actuator
- Non-threaded bushing
400B Series
400B Series Sealed, Subminiature, SMT Right Angle Rocker Switch
- SMT right angle; IP67
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT; latching or momentary
- Standard, black rocker actuator
- Epoxy sealed terminals
- Tape & reel packaged
500A Series
500A Series Subminiature Slide Switch
- Through hole or SMT
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A, 120VAC; 1A, 250VAC; UL
- SPDT; 2 or 3 positions; latching
- Vertical or right angle actuation
- PC pin or gullwing termination
- Epoxy sealed terminals
800B Series
800B Series Sealed, Subminiature, SMT Right Angle Pushbutton Switch
- SMT right angle; IP67 rated
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Gullwing termination
- Gold contact material
- Epoxy sealed terminals
- Tape & reel packaged
DR Series
DR Series Rotary DIP Switch
- Through hole, SMT, or Rt angle
- 25mA, 24VDC
- 2×3, 3×3, or 4×1 pcb terminal layout
- Flush, or shaft actuator
- 10 or 16 positions
- Real code
- 0.100″ (2.54mm), Full pitch
EG1215 Series
EG1215 Series SMT Right Angle Slide Switch
- SMT right angle
- 25mA, 24VDC
- SPDT On-On
- Gullwing termination
- 150gf operating force
- 1.5mm travel
- 1.4mm height above pcb
EG1312 Series
EG1312 Series SMT Right Angle Slide Switch
- SMT right angle
- 30mA, 15VDC
- SP3T On-On-(On)
- Gullwing termination
- 150gf operating force
- 1.5mm travel to any position
- 1.5mm height above pcb

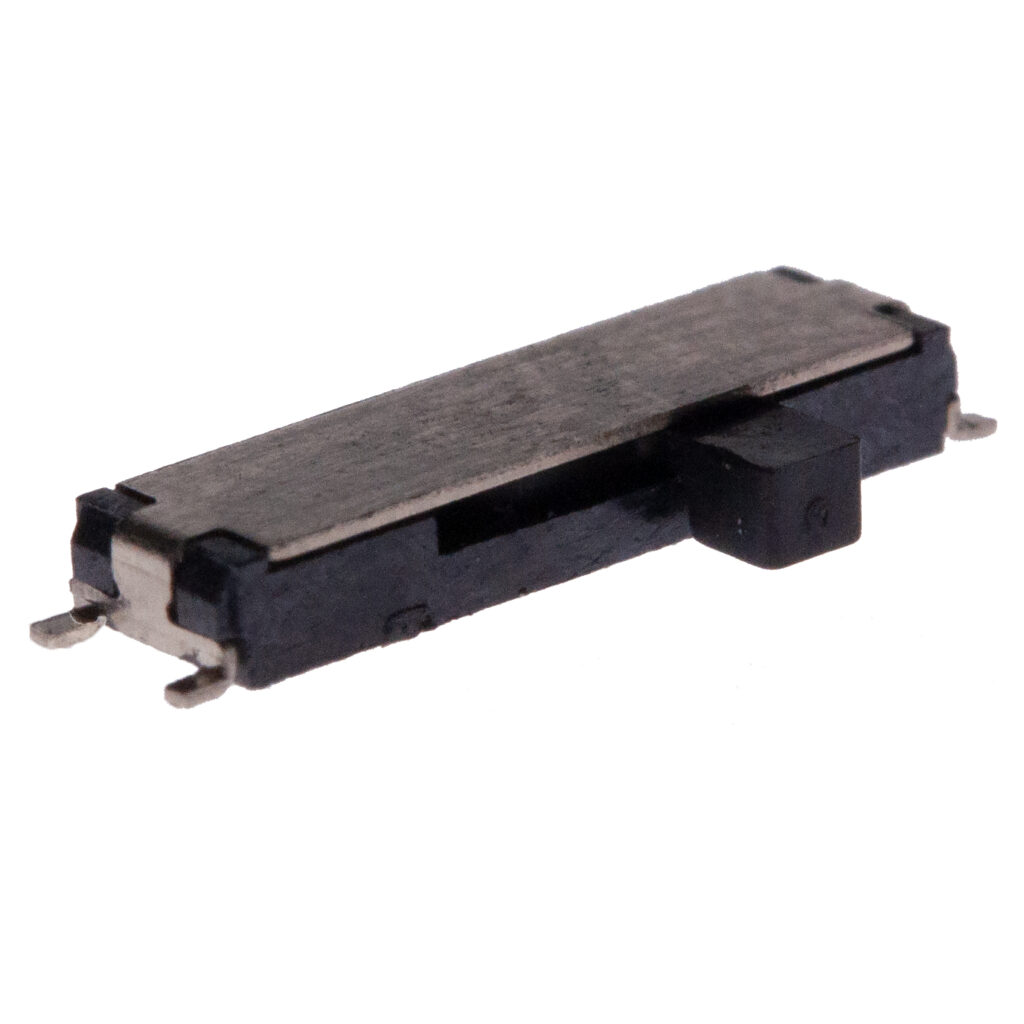

EG1315 Series
EG1315 Series SMT Right Angle Slide Switch
- SMT right angle
- 25mA, 24VDC
- SP3T On-On-On
- Gullwing termination
- 150gf-200gf operating force
- 1.5mm travel to any position
- 1.4mm height above pcb
EGJ1210 Series
EGJ1210 Series Slide Switch
- SMT, thru hole, or rt. angle
- 300mA, 24VDC
- SPDT On-On
- Gullwing or PC pin options
- 250gf operating force
- 1.6mm travel
- Gold terminals
EGL2290 Series
EGL2290 Series Illuminated, SMT Slide Switch
- SMT
- 300mA, 6VDC
- DPDT On-On
- LED illumination; color options
- Compact 7.65mm x 5.5mm body
- 200gf operating force
- 2.0mm travel
JS1300 Series
JS1300 Series 5-Position Navigation Switch
- SMT
- 50mA, 12VDC
- 4-way directional, center select
- Tactile (5 Button) actuator
- Center: 320gf, Tilt: 180gf
- 9.8mm x 9.8mm body
- 1.55mm actuator height
JS1400 Series
JS1400 Series 5-Position, Joystick Navigation Switch
- SMT
- 50mA, 12VDC
- 4-way directional, center select
- Plunger for cap actuator
- Center: 360gf, Tilt: 160gf
- 7.4mm x 7.7mm body
- Four actuator height options
JS5208 Series
JS5208 Series 5-Position, Joystick Navigation Switch
- SMT
- 20mA, 15VDC
- 4-way directional, center select
- Plunger for cap actuator
- Center: 500gf, Tilt: 280gf
- 12.4mm x 12.4mm body
- 12.2mm actuator height
KAC Series
KAC Series Low Profile, Piano DIP Switch
- Through hole or SMT
- 25mA, 24VDC
- Piano actuator; raised
- 2-10 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
KAD Series
KAD Series Low Profile, Tri-State DIP Switch
- Through hole or SMT
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 4-10 positions; SPDT each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
KAE Series
KAE Series Low Profile DIP Switch
- Through hole or SMT
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 1-12 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
KAG Series
KAG Series Low Profile DIP Switch
- SMT
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 1-10 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
KAN Series
KAN Series Low Profile, Half Pitch DIP Switch
- SMT
- 25mA, 24VDC
- Slide actuator; recessed
- 2-10 positions; SPST each position
- 0.050″ (1.27mm) Half pitch
- Gold contact material
- Top tape seal option
KAP Series
KAP Series Piano DIP Switch
- Through hole
- 25mA, 24VDC
- Piano actuator; raised or recessed
- 2-12 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
KAS Series
KAS Series DIP Switch
- Through hole; right angle option
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 1-12 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
LL3301 Series
LL3301 Series Long Life SMT Tactile Switch
- Long life version of the TL3301
- SMT
- 6mm x 6mm
- Many actuator height options
- Cap options for certain models
- 70gf operating force
- 1,000,000 cycle life
LP37 Series
LP37 Series Illuminated, Right Angle Pushbutton Switch
- SMT right angle
- 250mA, 50VDC
- SPDT On-(On)
- Gullwing termination
- 9.6mm plunger actuator
- LED illumination options
- Tape & reel packaged
RDM Series
RDM Series Sealed, Ultra Slim Rotary DIP Switch
- Through hole, SMT, or Rt angle
- 25mA, 24VDC; IP67 rated
- 3×3 pcb terminal layout
- Flush, or shaft actuator
- 10 or 16 positions
- Real or complementary code
- 0.100″ (2.54mm), Full pitch
RDT Series
RDT Series Sealed Rotary DIP Switch
- Through hole, SMT, or Rt angle
- 150mA, 42VDC; IP67 rated
- 2×3 or 3×3 pcb terminal layout
- Flush, shaft, or knob actuator
- 4, 6, 8, 10, or 16 positions
- Real or complementary code
- 0.100″ (2.54mm), Full pitch
RT3301 Series
RT3301 Series Reverse SMT Tactile Switch
- Reverse SMT
- 6mm x 6mm
- Many operating forces
- 100,000 cycle life
- Silver contact material
- -40° to 85°C operating temp
- 50mA @ 12VDC
TD1146 Series
TD1146 Series Ultraminiature SMT Detector Switch
- SMT
- 1mA, 5VDC
- SPST Off-(On)
- Angled toggle detector
- 50gf max. force; 3.0mm travel
- Silver contact material
- Ultraminiature size
TD1260 Series
TD1260 Series Ultraminiature SMT Detector Switch
- SMT
- 1mA, 5VDC
- SPST, NO or NC; momentary
- Angled toggle detector
- 35gf max. force; 2.5mm travel
- Mounting boss
- Ultraminiature size
TD4700 Series
TD4700 Series Ultraminiature SMT Detector Switch
- SMT
- 1mA, 5VDC
- SPST Off-(On)
- Angled toggle detector
- 50gf max. force; 2.2mm travel
- Mounting boss option
- Ultraminiature size; guiding post
TL1014 Series
TL1014 Series Miniature, SMT Right Angle Tactile Switch
- SMT
- 4.7mm x 3.5mm
- 160gf or 220gf operating force
- Gull wing termination
- Mounting boss option
- 4.5mm actuator height
- 1.65mm height off the pcb

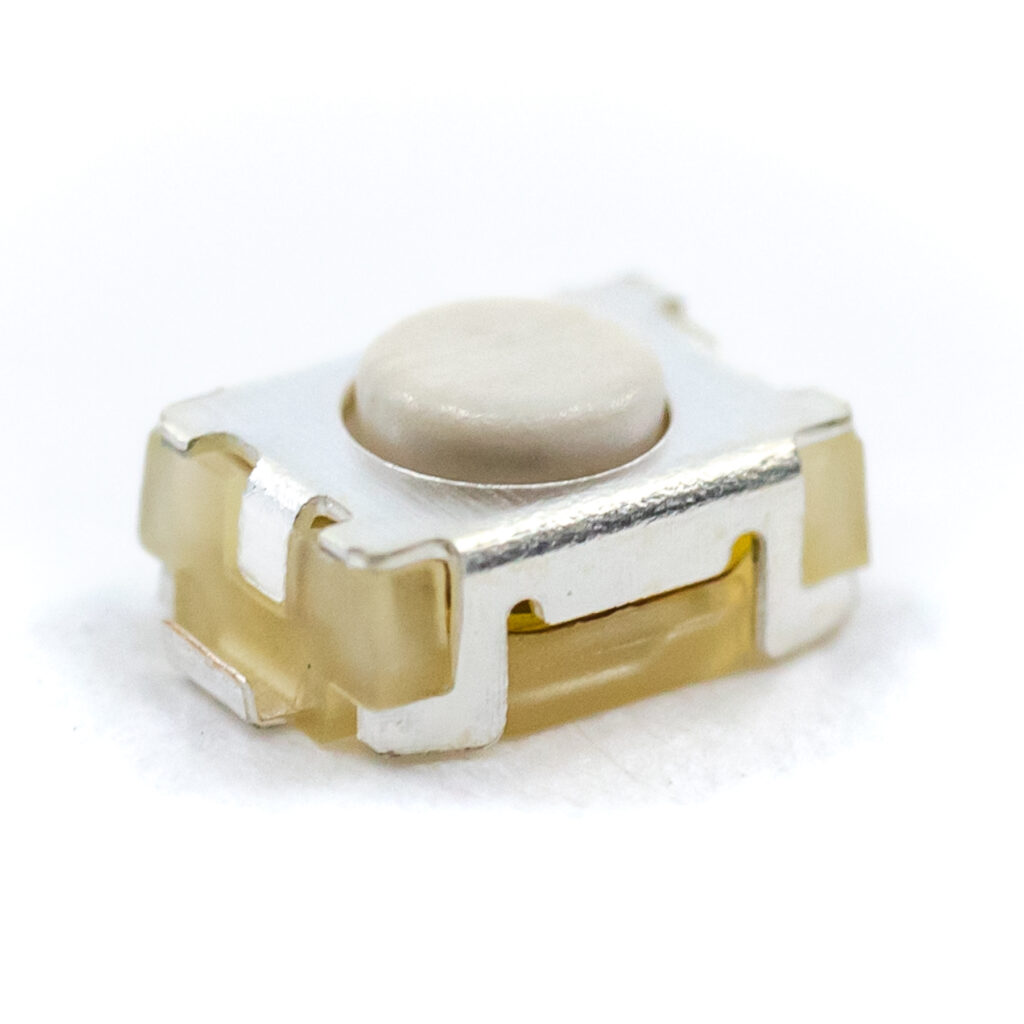

TL1015 Series
TL1015 Series Miniature SMT Tactile Switch
- SMT
- 3.9mm x 2.9mm
- 160gf or 250gf operating force
- Mounting boss option
- Gull wing termination
- Silver contact material
- Tape and reel packaged
TL1016 Series
TL1016 Series Subminiature, SMT Right Angle Tactile Switch
- SMT right angle
- 4.7mm x 2.9mm
- 3.55mm actuator length
- 160gf or 220gf operating force
- Mounting boss option
- Ground terminal option
- Gull wing termination
TL1018 Series
TL1018 Series Miniature SMT Tactile Switch
- SMT
- 3.5mm x 2.6mm
- Many operating forces
- Ground terminal option
- Mounting boss option
- Up to 500,000 cycle life
- Silver contact material
TL1030 Series
TL1030 Series Miniature SMT Tactile Switch
- SMT
- 3.5mm x 2.9mm
- Many operating forces
- Ground terminal option
- J-lead termination
- Up to 200,000 cycle life
- Silver contact material
TL2230 Series
TL2230 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination
- Plunger actuator options
- Many cap options
- 100gf, 140gf, or 230gf
TL2233 Series
TL2233 Series Subminiature Pushbutton Switch
- SMT
- 100mA, 30VDC
- DPDT On-(On)
- Gullwing termination
- Rectangular button actuator
- White actuator; black housing
- Wave solderable
View Series
TL3145 Series
TL3145 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.45mm x 6.45mm
- 3,000,000 cycles
- 180gf, 260gf, or 350gf force
- actuator height options
- J lead termination
TL3200 Series
TL3200 Series Dual Illuminated, SMT Tactile Switch
- SMT
- 6.8mm x 4.5mm
- Single or dual LED illuminated
- LED color options
- 2.5mm height
- 160gf operating force
- 30,000 cycle life
TL3210 Series
TL3210 Series Miniature, Illuminated, SMT Tactile Switch
- SMT
- 5.6mm x 3.4mm
- LED Illuminated
- LED color options
- 3.12mm actuator height
- 160gf operating force
- 100,000 cycle life
TL3215 Series
TL3215 Series Ultraminiature, Long Life, Illuminated, SMT Tactile Switch
- SMT
- 4.9mm x 4.9mm
- LED Illuminated
- many LED color options
- 2.0mm actuator height
- 1,000,000 cycle life
- 160gf or 250gf operating force
TL3240 Series
TL3240 Series Illuminated, SMT Tactile Switch
- SMT
- 6.1mm x 6.1mm
- LED Illuminated
- many LED color options
- Additional cap options
- 7.8mm height
- 100gf, 160gf, or 260gf force
TL3265 Series
TL3265 Series Illuminated, SMT Tactile Switch
- SMT
- 7mm x 6.8mm
- LED Illuminated
- LED color options
- Many additional cap options
- 12mm height
- 160gf operating force

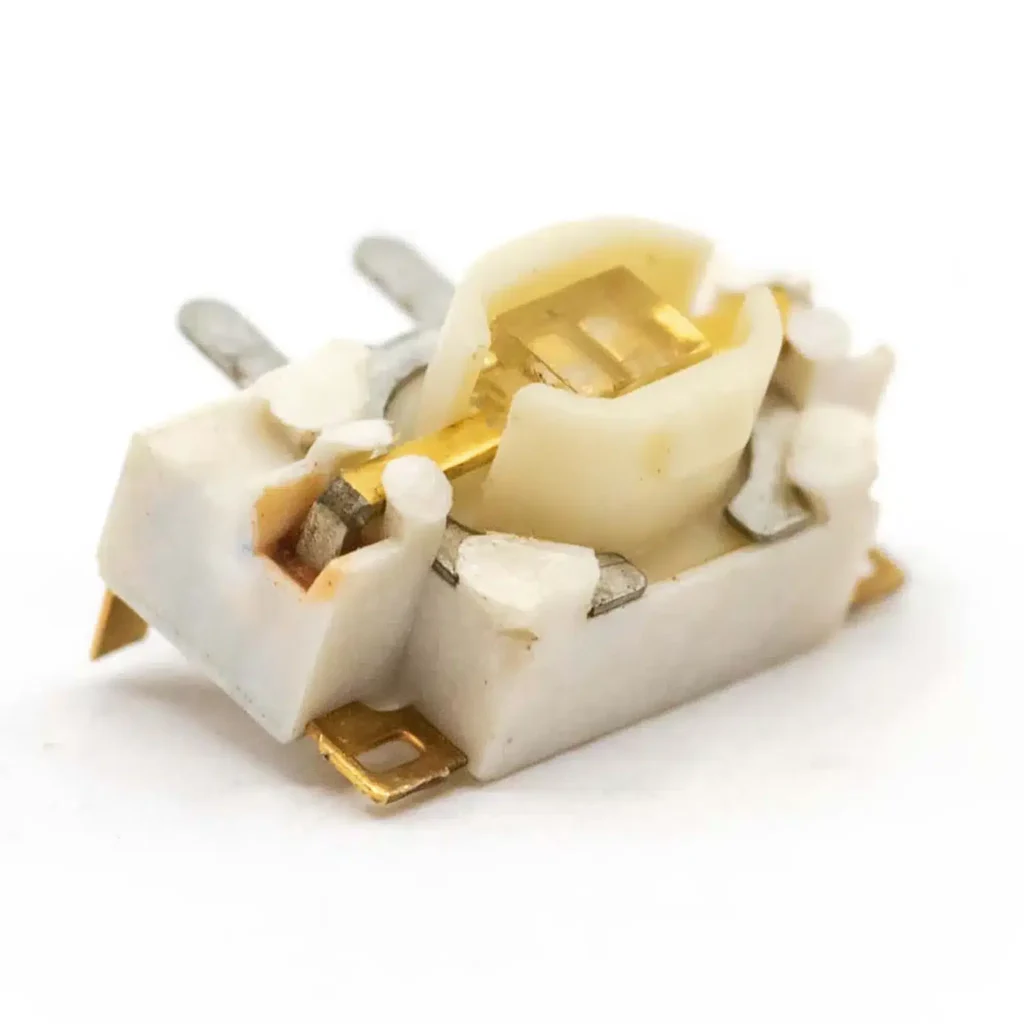

TL3275 Series
TL3275 Series Illuminated, SMT Right Angle Tactile Switch
- SMT
- 6.4mm x 3.55mm
- LED illuminated
- LED color options
- dual-LED
- 3.9mm actuator height
- 160gf operating force
TL3300 Series
TL3300 Series Long Life, SMT Tactile Switch
- SMT
- 12mm x 12mm
- Many operating forces
- Many actuator height options
- up to 10,000,000 cycles
- Silver contact material
- -25 to 70°C operating temp
TL3301 Series
TL3301 Series SMT Tactile Switch
- SMT
- 6mm x 6mm
- 100gf 160gf, or 260gf force
- Many actuator height options
- Cap options
- 100,000 cycle life
- Gull wing or J lead
TL3302 Series
TL3302 Series SMT Tactile Switch
- SMT
- 6mm x 3.5mm
- 130gf, 180gf, or 260gf force
- Two actuator height options
- Gull wing or J lead
- Silver contact material
- 20,000-50,000 min. cycles
TL3303 Series
TL3303 Series SMT Tactile Switch
- SMT
- 6mm x 6mm
- Ground terminal option (TLE)
- Long life option (LL)
- 100gf, 160gf, or 260gf force
- Two actuator height options
- Gull wing termination
TL3304 Series
TL3304 Series SMT Tactile Switch
- SMT
- 6.2mm x 6.2mm
- many operating forces
- Two actuator height options
- 100,000 cycle life
- Gull wing or J lead
- Silver contact material
TL3305 Series
TL3305 Series SMT Tactile Switch
- SMT
- 4.5mm x 4.5mm
- Many operating forces
- Three actuator height options
- Up to 500,000 cycle life
- Gull wing termination
- Silver contact material
TL3312 Series
TL3312 Series Miniature, Low Profile, SMT Tactile Switch
- SMT
- 3.7mm x 3.7mm
- low profile of 0.35mm
- 0.15mm travel
- 160gf or 235 gf operating force
- Up to 500,000 cycle life
- Silver contact material
TL3313 Series
TL3313 Series Subminiature, SMT Tactile Switch
- SMT
- 4.6mm x 4.6mm
- Three operating forces
- 1.5mm actuator height
- Gull wing termination
- Silver contact material
- 100,000 cycle life
TL3315 Series
TL3315 Series Ultra Low Profile, SMT Tactile Switch
- SMT
- 4.5mm x 4.5mm
- low profile of 0.55mm
- 0.20mm travel
- Three operating forces
- Up to 1,000,000 cycle life
- Silver contact material
TL3330 Series
TL3330 Series SMT Right Angle Tactile Switch
- SMT
- 7.8mm x 2.5mm
- 3.5mm actuator height
- 130gf or 260gf operating force
- Gull wing termination
- 30,000 – 50,000 cycle life
- Silver contact material
TL3336 Series
TL3336 Series Sealed, SMT Right Angle Tactile Switch
- IP67
- SMT
- 7.1mm x 6.6mm
- 1.9mm actuator height
- Many operating force options
- 100,000 cycle life
- Silver contact material

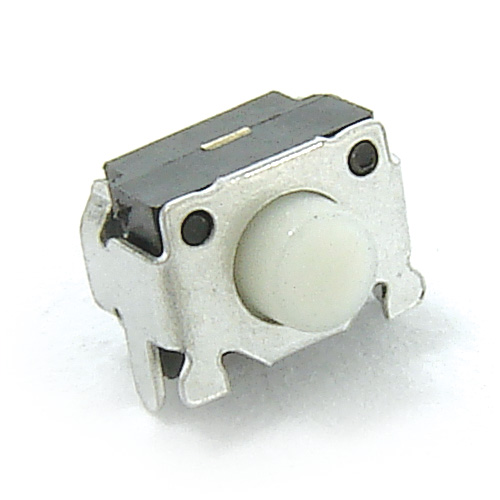

TL3340 Series
TL3340 Series Subminiature, SMT Right Angle Tactile Switch
- SMT
- 4.25mm x 3.3mm
- 3.4mm or 5.9mm actuator height
- Three operating forces
- Gull wing termination
- 100,000 cycle life
- 300,000 for silicon actuator
TL3342 Series
TL3342 Series Low Profile, SMT Tactile Switch
- SMT
- 5.2mm x 5.2mm
- Ultra low profile of 1.50mm
- Many operating forces
- Gull wing termination
- Up to 100,000 cycle life
- Silver contact material
TL3360 Series
TL3360 Series SMT Right Angle Tactile Switch
- SMT
- 6.5mm x 6.5mm
- 185gf or 260gf operating force
- Many actuator height options
- Solder pad option
- Auto placement tab option
- Silver or gold contacts
TL3365 Series
TL3365 Series Ultraminiature, SMT Tactile Switch
- SMT
- 4.2mm x 3.2mm
- 2.5mm actuator height
- Three operating forces
- J Lead termination
- Silver contact material
- 100,000 cycle life

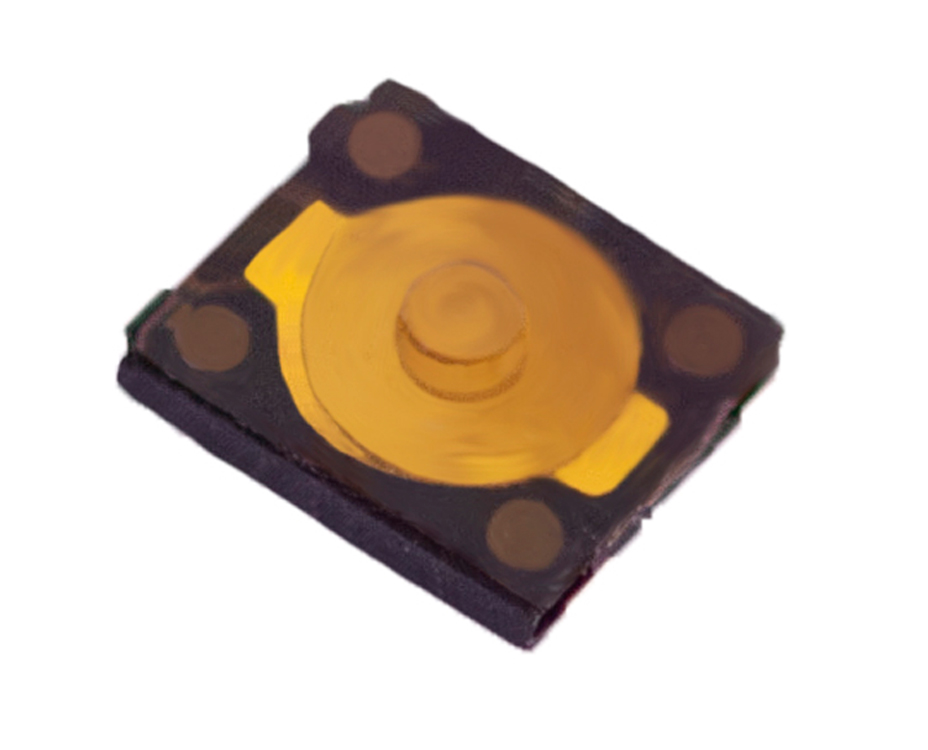

TL3701 Series
TL3701 Series Ultraminiature, Micro SMT Tactile Switch
- SMT
- 3.0mm x 2.6mm
- 0.65mm height
- 100gf or 160gf operating force
- Gull wing termination
- 0.15mm travel
- Up to 100,000 cycle life
TL3780 Series
TL3780 Series Ultraminiature, Low Profile, SMT Tactile Switch
- SMT
- 2.0mm x 3.0mm
- low profile 0.60mm
- 100gf, 160gf, 240gf or 330gf operating force
- Up to 500,000 cycle life
- Gull wing termination
- 0.13mm travel
TL3901 Series
TL3901 Series Subminiature, SMT Right Angle Tactile Switch
- SMT
- 6mm x 5.4mm
- 180gf operating force
- Mounting boss
- Gull wing termination
- 50,000 cycle life
- 0.30mm travel
TL4100 Series
TL4100 Series Miniature, SMT Edge Mount Right Angle Tactile Switch
- SMT, rt. angle edge mount
- 6.2mm x 2.5mm
- 2.0mm actuator height
- 120gf, 160gf, or 240gf
- Gullwing; L-shape terminals option
- Up to 1,000,000 cycle life
- 0.15mm travel
TL4105 Series
TL4105 Series Ultraminiature, SMT Edge Mount Right Angle Tactile Switch
- SMT, rt. angle edge mount
- 6.2mm x 2.5mm
- 1.7mm actuator height
- 160gf or 250gf
- Gullwing termination
- Up to 200,000 cycle life
- 0.15mm travel
TL4110 Series
TL4110 Series Low Profile, SMT Edge Mount Right Angle Tactile Switch
- SMT
- 2.0mm x 2.8mm
- 0.65mm actuator height
- 160gf operating force
- Gull wing termination
- 300,000 cycle life
- 0.13mm travel
TL4115 Series
TL4115 Series SMT Edge Mount Right Angle Tactile Switch
- SMT
- 4.5mm x 2.2mm
- 2.6mm actuator height
- 160gf or 220gf operating force
- 600,000 cycle life
- 0.15mm travel
- Silver contact material
TL6120 Series
TL6120 Series Sealed, SMT Tactile Switch
- IP67
- SMT
- 7.4mm x 7.4mm
- Many operating forces
- Many actuator height options
- Up to 1,000,000 cycle life
- Silver or gold contacts
TL6150 Series
TL6150 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.2mm x 6.2mm
- Up to 5,000,000 cycles
- Three operating forces
- Two actuator height options
- Gull wing or J lead
TL6170 Series
TL6170 Series Sealed, SMT Tactile Switch with Tall Actuator
- IP67
- SMT
- 6.3mm x 6.3mm
- 7.2mm or 7.7mm Actuator
- 180gf or 250gf operating force
- 300,000 cycle life
- Gull wing termination
TL6200 Series
TL6200 Series Sealed, Long Life, Tactile Switch
- IP67
- SMT or Through hole
- 10.1mm x 10.1mm
- Many actuator height options
- Long life of 10,000,000 cycles
- 300gf operating force
- Black or white actuator
TL6210 Series
TL6210 Series Sealed, Illuminated, SMT Tactile Switch
- IP67
- SMT
- 6.2mm x 4.6mm
- LED Illuminated
- many LED color options
- 200gf operating force
- 3.72mm actuator height
TL6330 Series
TL6330 Series Sealed, SMT Tactile Switch
- IP67
- SMT
- 4.60mm x 2.80mm
- 1.9mm or 2.5mm actuator height
- Three operating forces
- Up to 200,000 cycle life
- Silver contact material
TL6340 Series
TL6340 Series Sealed, SMT Right Angle Tactile Switch
- IP67
- SMT
- 3.85mm x 1.95mm
- 2.9mm actuator height
- 160gf operating force
- 200,000 cycle life
- 0.2mm travel
TL6400 Series
TL6400 Series Sealed, SMT Tactile Switch
- IP67
- SMT
- 6mm x 3.5mm
- 160gf or 260gf operating force
- 4.3mm or 5.0mm actuator height
- 30,000-50,000 cycle life
- Silver contact material
TL6700 Series
TL6700 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.9mm x 6.2mm
- Up to 500,000 cycle life
- Flush or 3.4mm actuator
- 160gf or 260gf operating force
- Gull wing or J lead
TL6800 Series
TL6800 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.3mm x 6.2mm
- Up to 1,000,000 cycle life
- 160gf or 260gf operating force
- 3.1mm actuator height
- Silver contact material
TL9100 Series
TL9100 Series Soft Touch, Long Travel, SMT Tactile Switch
- SMT
- 6mm x 6mm
- “Soft Touch” tactile switch
- Long travel of 1.3mm
- 200gf or 350gf operating force
- 5mm actuator height
- Up to 100,000 cycle life
TL9210 Series
TL9210 Series Soft Touch, Long Travel, SMT Tactile Switch
- SMT
- 6mm x 6mm
- “Soft Touch” tactile switch
- Long travel of 1.3mm
- 180gf or 260gf operating force
- 5mm actuator height
- 100,000 cycle life
TL9320 Series
TL9320 Series Sealed, SMT Tactile Switch
- IP67
- SMT
- 8.4mm x 8.4mm
- 400gf operating force
- 3.95mm actuator height
- 500,000 cycle life
- Silver contact material
TS2 Series
TS2 Series SMT Snap Action Switch
- SMT
- 100mA, 125VAC or 48VDC
- SPST Off-(On)
- Pin plunger actuator
- 70gf operating force
- 3,000,000 life cycles
- Tape & reel packaged
