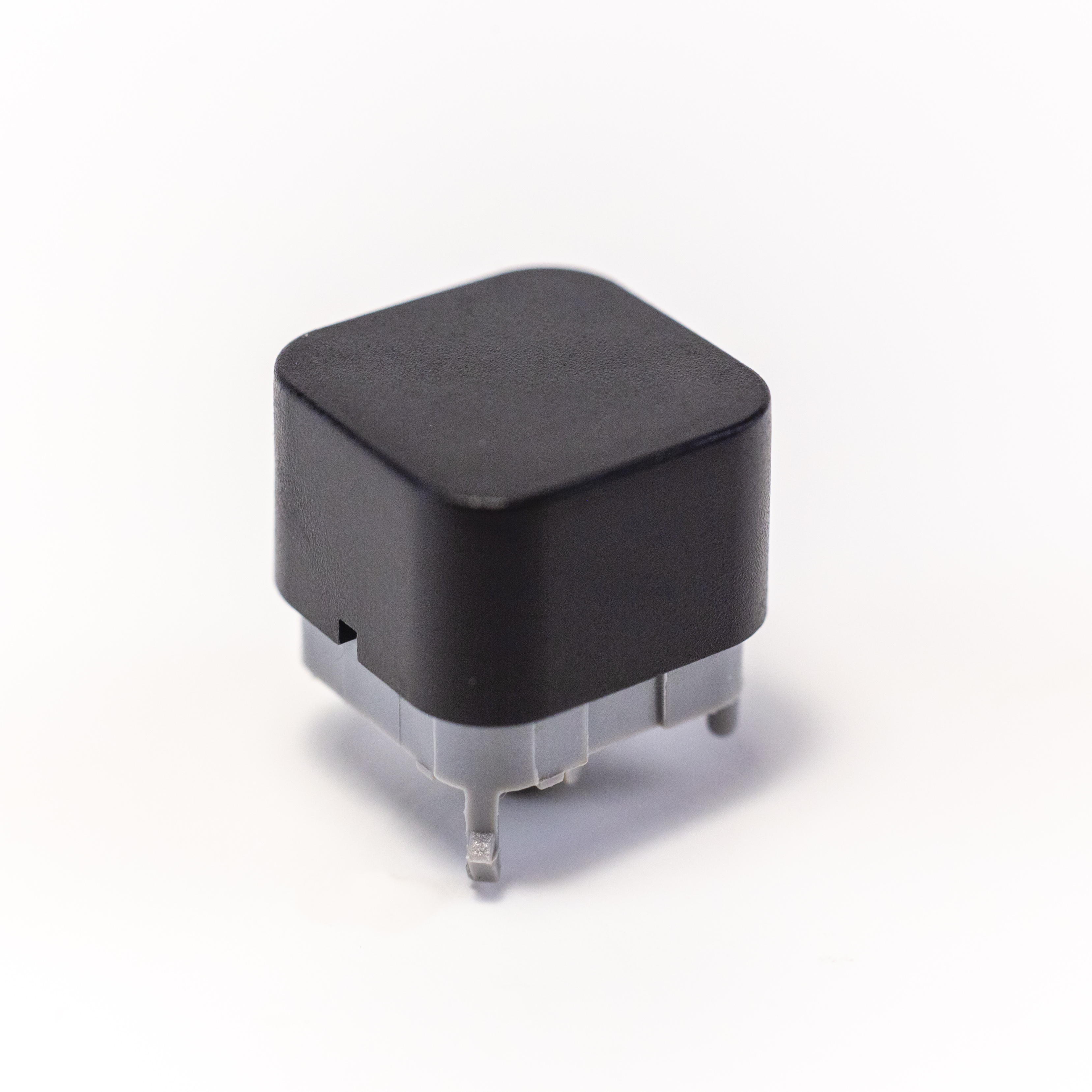

PB300 Series Long Travel Pushbutton Switch

PB300 Series Long Travel Pushbutton Switch

PB300 Series: PB300DTQ

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant

PB300 Series Long Travel Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PB300DTQ

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PB300DTQ

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PB300DTQ from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 30mA, 28VDC, SPDT, Off-(On)-(On), Through Hole

Powered by oemsecrets

About PB300 Series

  • SPST or SPDT/Double Action
    • Double action: first circuit closes mid-travel, second at full travel
  • Long travel (2.0mm full), momentary pushbutton
  • High actuation force (ST: 490 grams; DT: 600 grams first position and 1,150 grams second position)
  • Firm tactile response
  • Operating Temperature: -40°C to +95°C
  • Electrical Rating: 30mA @ 28VDC
  • Life Expectancy: 20,000 cycles

PB300 Series Markets

Audio Visual

Product Specifications

PB300DTQ

PUSHBUTTON, 30mA, 28VDC, SPDT, Off-(On)-(On), Through Hole

  • Series Name PB300
  • PackagingBulk
  • Current Rating30mA
  • Voltage Rating28VDC
  • CircuitSPDT
  • FunctionOff-(On)-(On)
  • Mounting TypeThrough Hole
  • Termination TypePC Pin
  • Contact MaterialSilver
  • Actuator TypeSquare, Button
  • Actuator ColorBlack
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Operating Temperature-40°C to 95°C
