Read MoreWBL Series Illuminated, Right Angle Pushbutton Switch

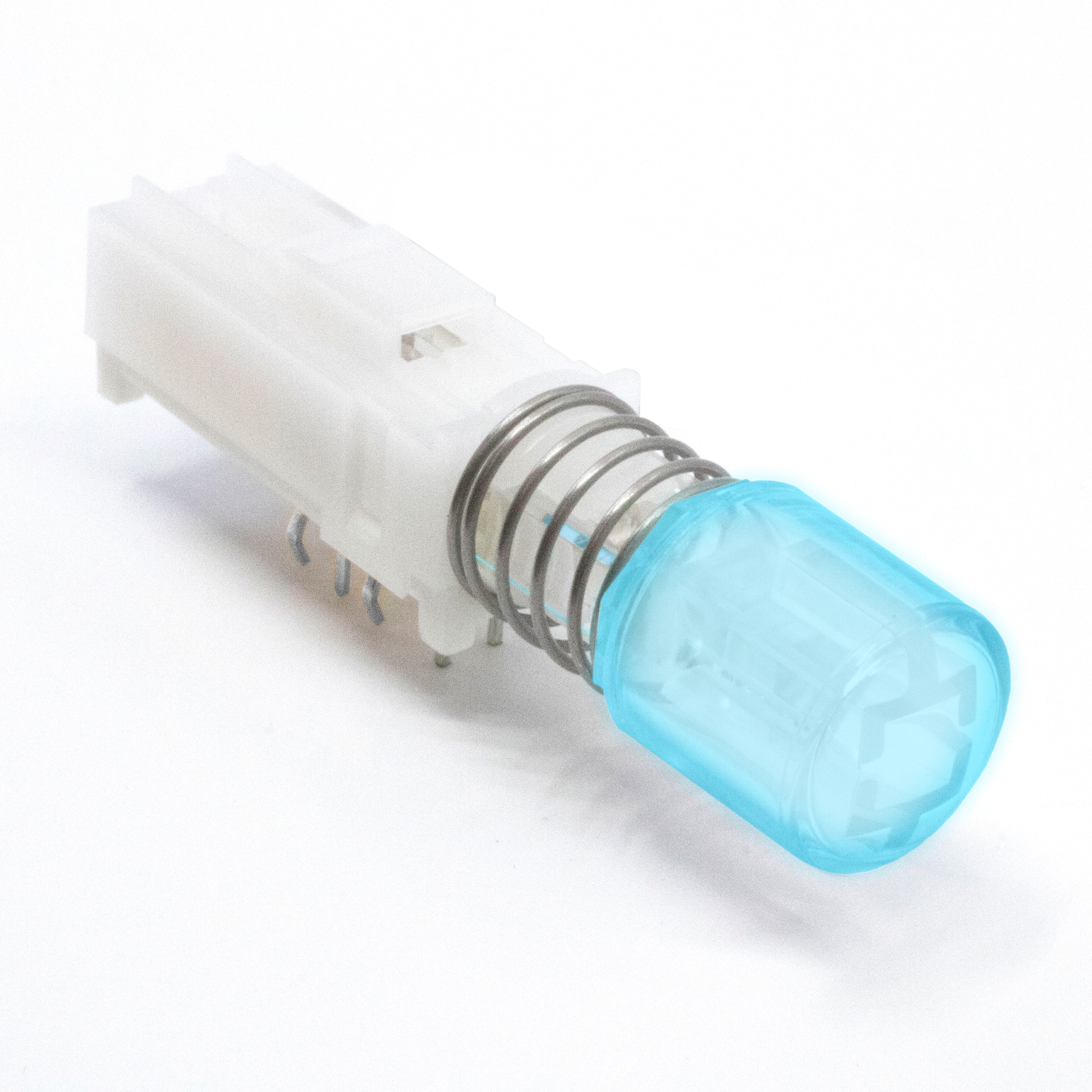

WBL Series Illuminated, Right Angle Pushbutton Switch
Stock Check for WBL2UEEBQR05CLR
Not the product you are looking for? Configure your product
PUSHBUTTON, 300mA, 30VDC, DPDT, On-On, Through Hole, Right Angle, Illuminated
About WBL Series
- Through hole right angle
- 300mA, 30VDC
- DPDT or 4PDT circuit;Â latching or momentary function
- PC pin termination
- Plunger actuator, or optional cap 10mm dia.
- Optional cap – clear, or black/silver with power symbol
- LED illumination options including bi-color
- Operating Temperature: -20°C to +70°C
WBL Series Markets
Product Specifications
WBL2UEEBQR05CLR
PUSHBUTTON, 300mA, 30VDC, DPDT, On-On, Through Hole, Right Angle, Illuminated
- Series Name WBL
- PackagingBulk
- Current Rating300mA
- Voltage Rating30VDC
- CircuitDPDT
- FunctionOn-On
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeRound, Button
- Actuator ColorClear
- Illumination StyleFull
- Illumination ColorLED, Blue
- Illumination Voltage3.5VDC
- Operating Temperature-20°C to 70°C
- Cap OptionClear Cap
Support for WBL2UEEBQR05CLR
Not the product you are looking for? Configure your product
