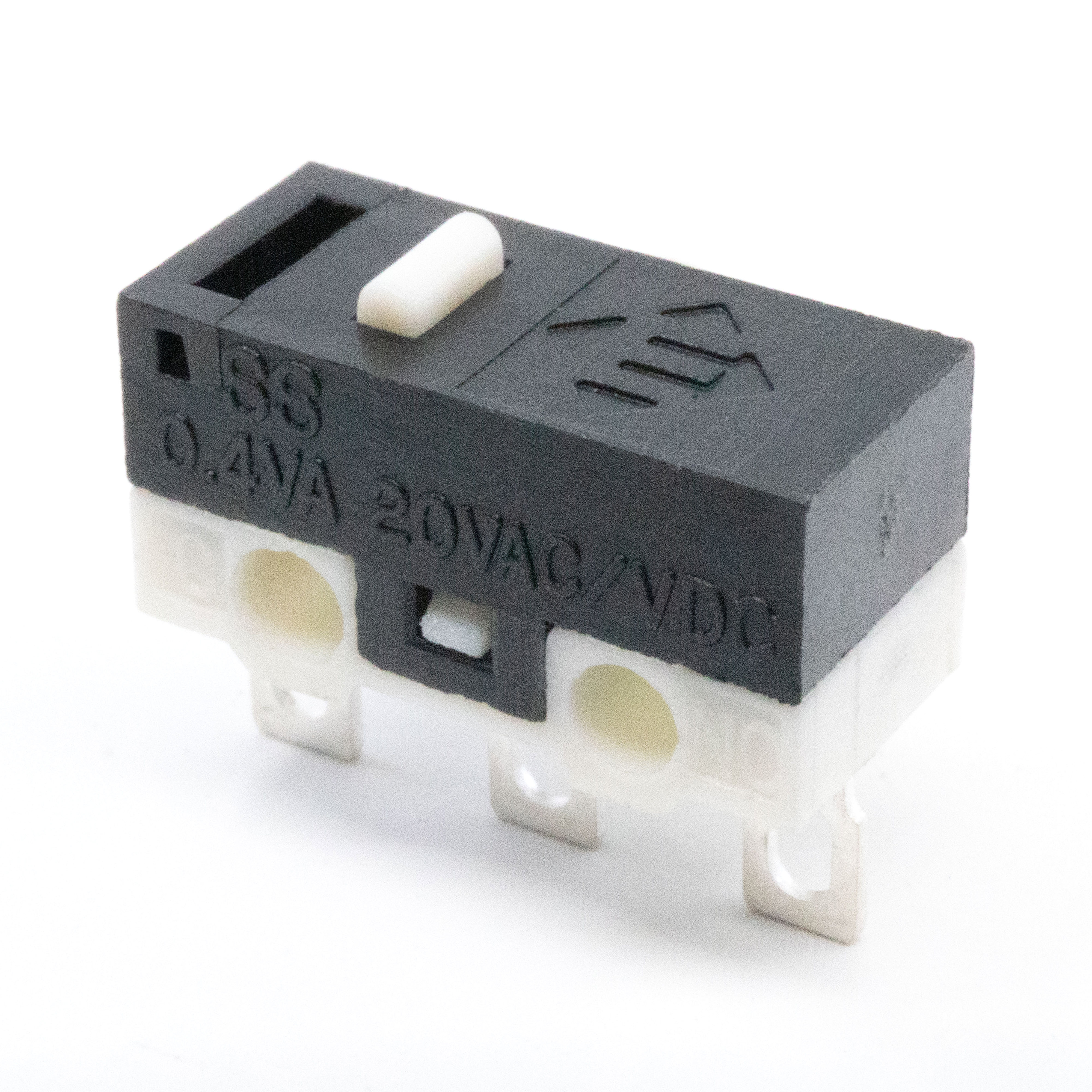

SS Series Subminiature Snap Action Switch
Stock Check for SS075R100F130S1A
Not the product you are looking for? Configure your product
SNAP ACTION, 0.4VA, 20VAC/VDC, SPDT, On-(Off), Chassis Mount
About SS Series
- Electrical Ratings:
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A, 125VAC; 1.5A, 250VAC; UL, cUL
- Silver – 0.1A, 125VAC / 5VDC
- SPDT circuit; momentary function
- Chassis mount, through hole, or through hole right angle mounting options
- Solder lug, PCB pin, PCB retention, or right/left angled PCB pin termination options
- Pin plunger, lever, or simulated roller actuator options
- Between 15gf – 130gf operating force options
- 1,000,000 cycles mechanical life
- Gold or silver contact material
- -25°C to 75°C operating temperature
SS Series Markets
Product Specifications
SS075R100F130S1A
SNAP ACTION, 0.4VA, 20VAC/VDC, SPDT, On-(Off), Chassis Mount
- Series Name SS
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating20VAC/VDC
- CircuitSPDT
- FunctionOn-(Off)
- Mounting TypeChassis Mount
- Termination TypeSolder
- Contact MaterialGold
- Actuator TypeRound (Pin Plunger)
- Operating Force130gf
- Operating Temperature-25°C to 75°C
